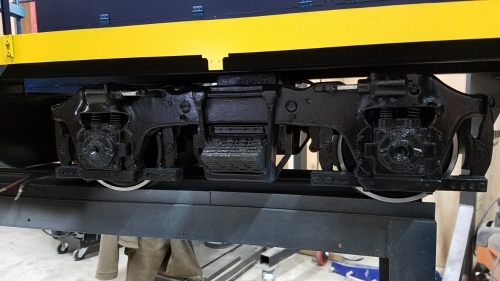

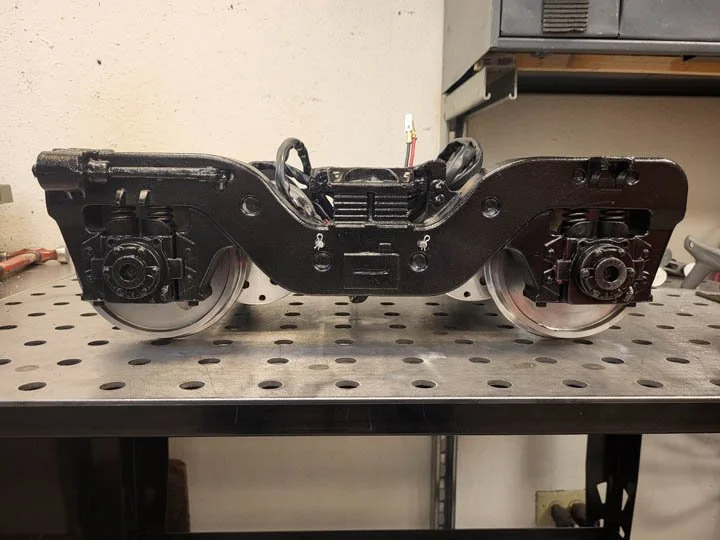

7.5” Gauge AAR powered truck. Fully Equalized, 5:1 chain drive reduction, 350 watt 24v motors, CNC IBLS steel wheels, TIG welded aluminum construction, rotating journals ( caps not shown) 12 1/4” axle centers, Oil-Lite bronze journals.

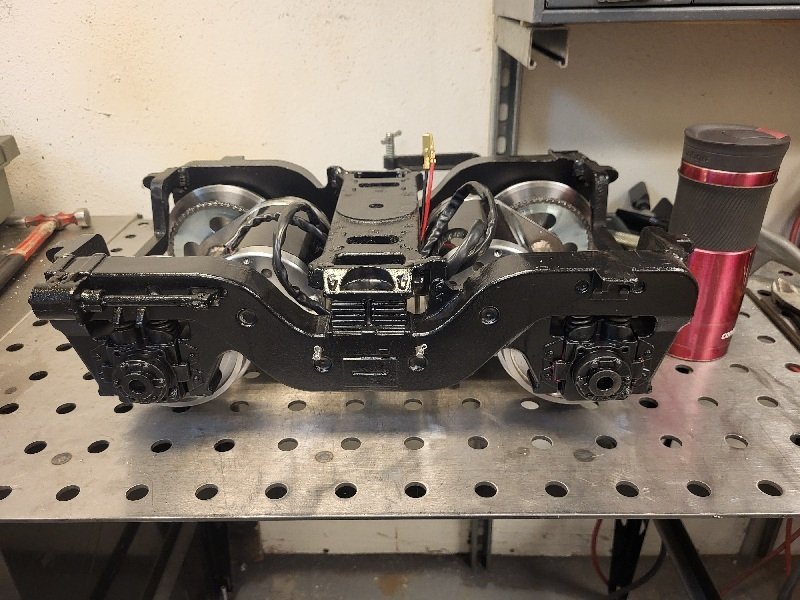

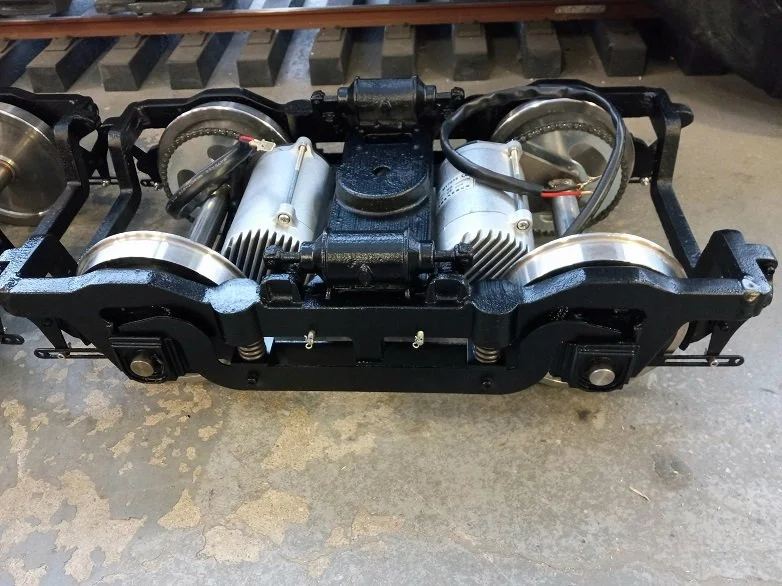

1.5/1.6” scale AAR type truck with dual axle hung 350 watt 24v motors, equalized suspension, 40” cnc’d wheels with 5/8” axles and sintered bronze oil-lite bushings. Faux metal braking system with 12” axle centers. Ready to run $3800 per pair plus $200 crating and shipping.
Here is a look at our 1" scale AAR trucks. Nicely cast in aluminum with full air cylinder castings on both sides integrally cast into the side frames for detail and strength. Metal brake shoes. Fully TIG welded with (4) 150 watt 24 volt traction motors with 4:1 reduction with chain drive. 40" cnc'd flat blacked drive wheels like the prototype. Fully sprung and equalized as well.
Price: $2200.00 per pair

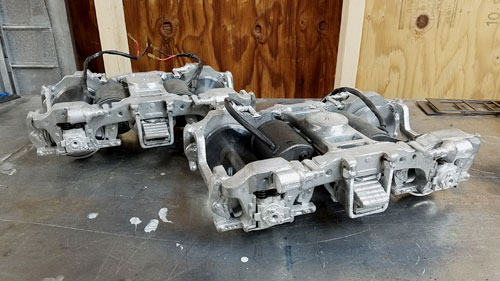

If you need 1.5” scale Blomberg trucks we have them. Here’s a small batch of trucks being built up…All parts are cast at our local foundry in Arvada CO then machined and TIG welded here at Backyard Train CO in Denver.

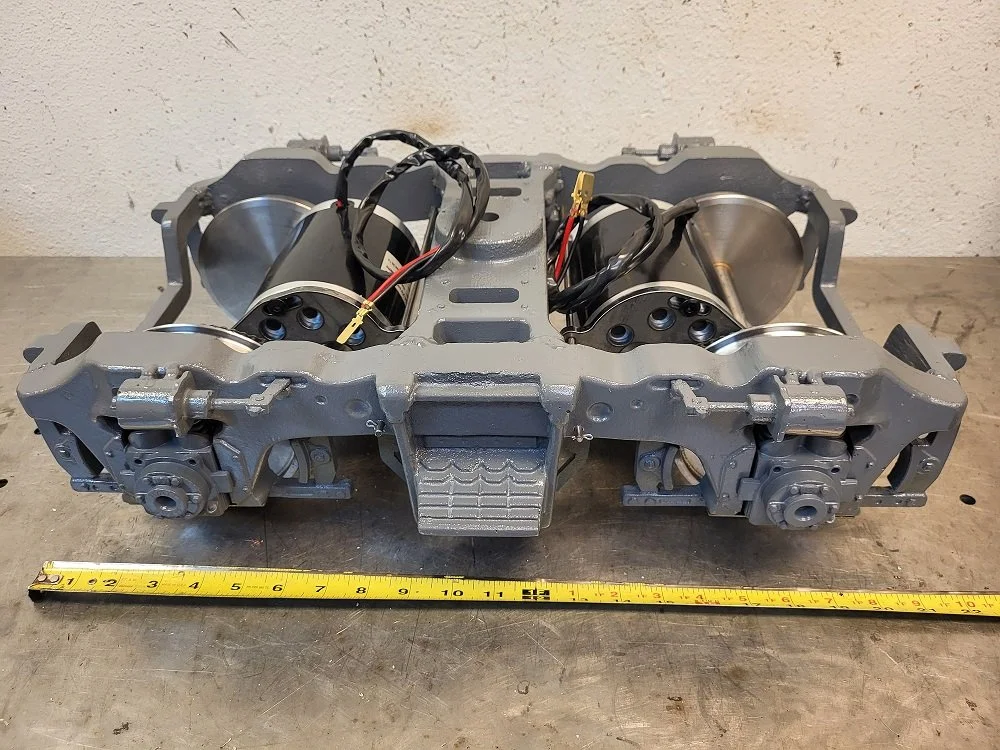

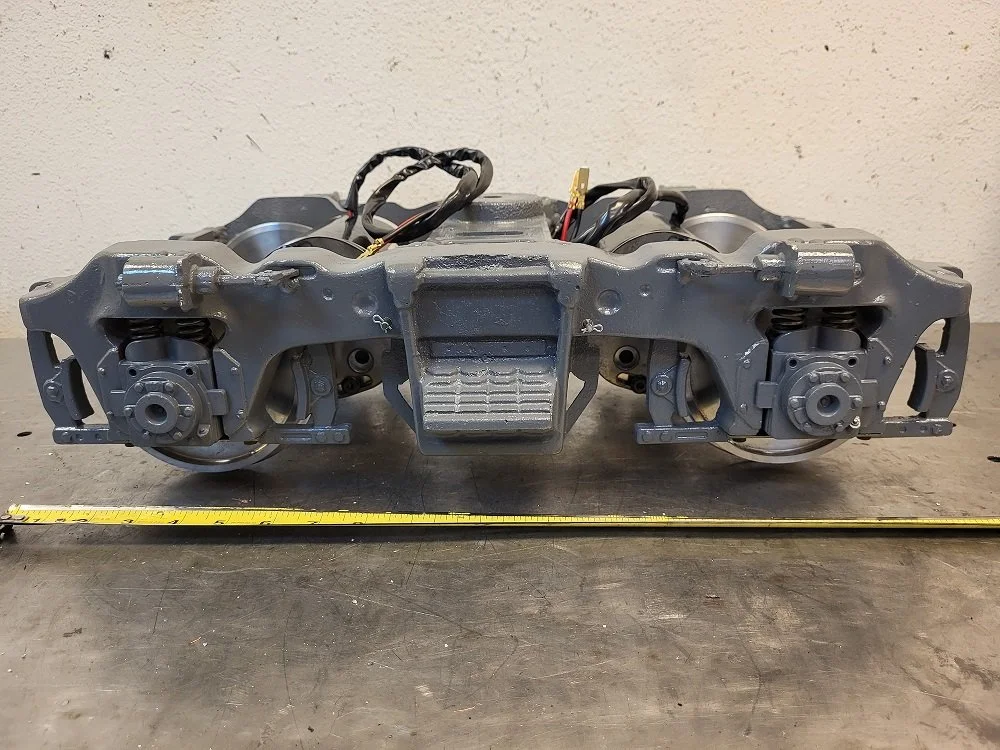

We have trucks available in 1" and 1.5/1.6" scale. Shown here is our 1.5/1.6" scale Blombergs with axle hung traction motors and sprung journals. The die cast steel Hyatt journal boxes have detailed lettering like the prototype plus dual sealed ball bearings and Flat backed cnc'd solid steel wheels.Sealed roller bearings are standard.
Each truck has two 24v 500 watt motors and chain drive for plenty of power. Drop us an email for more specs...
Price per pair is $4200.00 in 7.5 or 7.25” gauge plus $200 crating &shipping

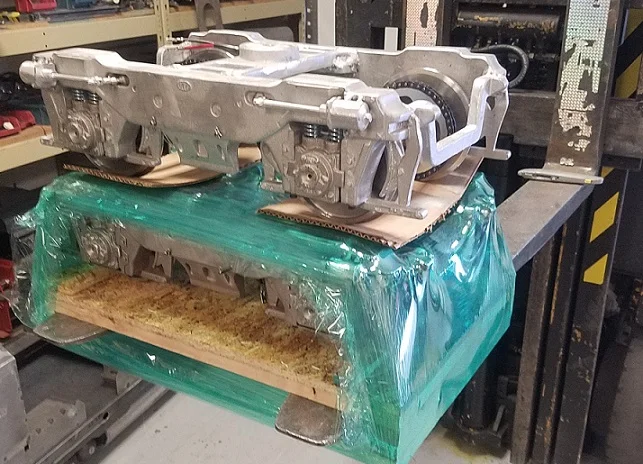

A set of 1.5” scale Flexicoil trucks getting crated up for shipping…

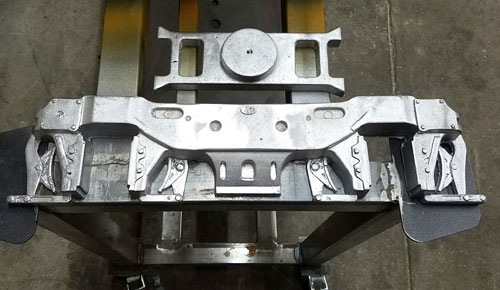

Our newest addition to the 1.5" scale truck line up, our flexicoil truck is highly detailed and uses our Hyatt journal boxes and Bloomberg cast aluminum air cylinders ( non-functional) for nice detail. These side frames measure 21" wide to the ends of the brake rigging and over 1.25" thick over the journals. A mighty casting. Trucks come fully TIG welded with end frames ( not shown). 450 watt 24v traction motors with 40" scale flat backed steel wheels. These trucks will look great on your switcher and GP diesel!
$3800.00 per pair ready to run plus $200 flat rate crating and shipping.

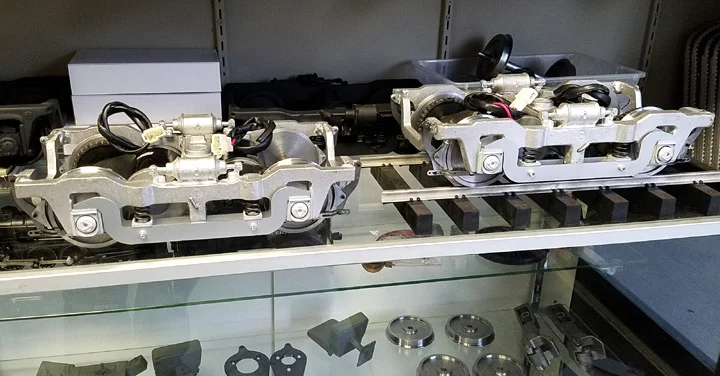

Our 1" scale Bloomberg trucks are the standard for many railroads. With four 24v 150 watt traction motors and 40" scale wheels these units pack a big punch. Fully sprung with scale Hyatt journal boxes they are ready for service at the club or in the backyard! Flat backed I.B.L.S standard steel wheels will keep you on track. Fully pro TIG welded aluminum makes for a strong truck that is built to last...
$2650 per pair plus shipping.
Available now is our 1" scale 41-N truck for a new line of passenger cars in the works.. 36" scale wheels with needle bearing metal journal boxes and fully equalized suspension...750.00/PR.
